U*DG/PRO - Drainer Groove Pro Jig

U*DG/PRO
CA$573.82

Stock Level In Stock

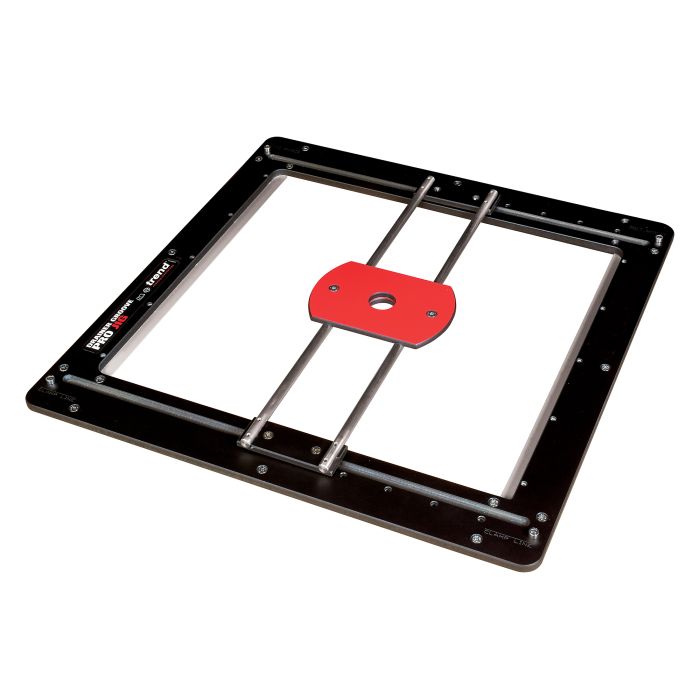

Frame for routing drainer grooves in solid timber and solid surface worktops.

  • Made from 15/32-inch hardwearing CNC machined Compact Grade High Pressure Laminate.
  • X and Y-axis ski and carriage allows forward and back, and side to side movement.
  • Provides a 0.5 degree fall.
  • Router carriage has hole to accept a 1 3/16-inch guide bush.
  • Carriage can be locked to allow parallel groove routing for standard drainer grooves.
  • Router carriage can also be used for tapered surfacing applications with a 3/4-inch diameter straight cutter.
  • Outer frame has index holes at 1 15/16-inch centres to restrict length of slots and includes two index pins.
  • Five inner templates accessories available to give various groove affects such as straight slot, straight fan, curved fan, lightning fan and hot rod.
  • Router carriage is not used when inner templates are fitted.
  • Requires suitable plunge router with 1 3/16-inch guide bush and cutters.
  • Patent App. No. GB1718517.4
  • A Unibase may be required for certain makes and models of router.
Fall
0.5 degree
Groove length
17 19/32"
X-axis
17 19/32"
Y-axis
1611/32"
Length
23 5/8"
Height
23 5/8"
Width
15/32"
Weight
4kg
Guide bush
1 3/16"
Plunge router
1/2-inch
Cutter
Cove R3/8"

no spare products

Videos

Drainer Groove Pro Jig Video

See how the innovative features we've designed into the Drainer Groove Pro Jig, will help save you time and deliver perfect results with every cut.
