U*LOCK/JIG - Lock Jig
U*LOCK/JIG

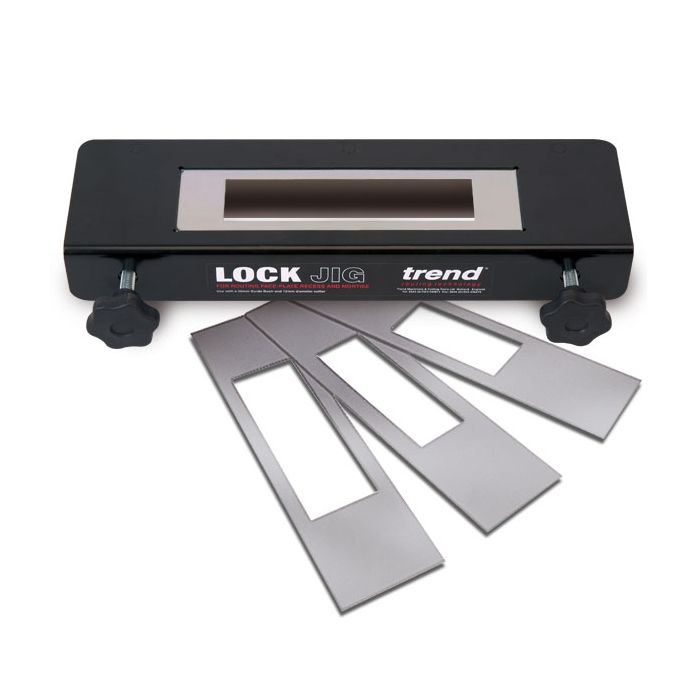

This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.
- For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1inch face-plate. Deeper mortises can be achieved with a suitable size of auger bit.
- Fast, clean & accurate results on doors 1 5/16 inch to 2 1/4 inch thick, even in hardwood.
- Steel plates & body.
- Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
- Jig requires a router with 3-1/8 inch plunge.
Contractor Lock Jig
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and latches.
Key Applications
B
U
C
Features
Steel Construction for maximum strength, durability and accuracy.
Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.
Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.
17 Interchangeable Templates to fit all common lock case (5 templates) and face plates (12 templates).
Centering Insert ensures jig is perfectly positioned on any door

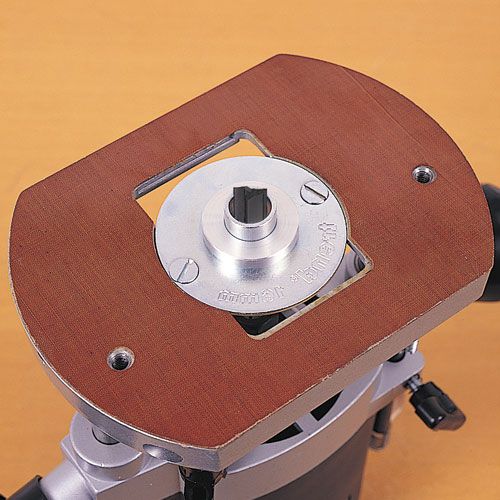

Guide Bush Collar converts the GB160 to a 30mm Guide Bush, minimising setup time.
Reference Chart provides quick reference between templates and lock sizes
2mm Height Spacers can be adjusted to accommodate different guide bush spigots.
Requires a router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).
Details
-
Steel Construction for maximum strength, durability and accuracy.
-
Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.
-
Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.
-
16 Interchangeable Templates to fit all common lock case (4 templates) and face plates (12 templates).
-
Centering Insert ensures jig is perfectly positioned on any door
-
Guide Bush Collar converts the GB160 (supplied with Trend Hinge Jigs) to a 30mm Guide Bush, minimising setup time.
-
Reference Chart provides quick reference between templates and lock sizes
-
2mm Height Spacers can be adjusted to accommodate different guide bush spigots.
-
Requires: router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).
Featured Products
LOCK/JIG
Contractor Lock Jig
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and latches.
Related Products
Discover more about Trend Door Hanging Solutions
Explore the Skeleton Hinge Jig
Door Hanging Products
Door Hanging Videos
- Door thickness min.
- 1 5/16 "
- Door thickness max.
- 2 1/4 "
Face-plate dimensions
- Imperial approx. (Metric) (D x OL)
- Template
- 7/8"x 6 1/8" (22.2x156 mm)
- 1
- 7/8"x 6" (22.5x152.5 mm)
- 2
- 1"x 4 3/4" (25.4x121 mm)
- 3
- 1"x 5" (25.4x127.5 mm)
- 4
- 1"x 5 1/4" (25.4x133.5 mm)
- 5
- 1"x 5 3/4" (25.4x145 mm)
- 6
- 1"x 6" (25.4x153 mm)
- 7
- 1"x 6" (25.4x156.5 mm)
- 8
- 1"x 6 1/2" (25.4x165.5 mm)
- 9
- 1"x 7" (25.4x177 mm)
- 10
- 1"x 2 1/4" (25x57.5 mm)
- 11 UPPER
- 1"x 2 1/4" (26x56.5 mm)
- 11 LOWER
- 1"x 6 3/8" (25.6x162mm
- 12
Mortise dimensions
- Imperial (Metric) (D x OL)
- Template
- 5/8" x 2 7/8" (16x72 mm*+)
- A
- 5/8" x 4 1/4" (16x107 mm*)
- B
- 3/4" x 3 1/8" (19x78 mm*)
- C
- 3/4" x 4 1/4" (19x109 mm*)
- D
*These are maximum mortise lock case (body) lengths, unless radius ends are squared with a chisel. Actual length of mortise 9/32 nch (7mm )longer.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
U*C172X1/2TC | Trend Craft Pro 1/2in shank worktop joint cutter - 15/32in diameter Two Flute Carbide tips.
|
CA$51.24 | ||
|
U*GB/COLL/1630 | Aluminium collar to fit guide bushes.
|
CA$15.07 | ||
|
U*GB/US/160 | Guide bush with locking ring for Hinge Jigs. |
CA$11.62 |
Videos
Lock Jig Video
Using the Lockjig to rout a door lock.
Hinge Jig Video
Demonstrating how easyand quick it is to hang a door using a hinge jig
Instructions
Spares Diagrams
Product Questions
The standard radius produced with our lock jig is 6mm this is the radius from a 12mm diameter cutter. A 10mm radius can be obtained with a 20mm cutter C030A in conjunction with a GB240 24mm guide bush.
