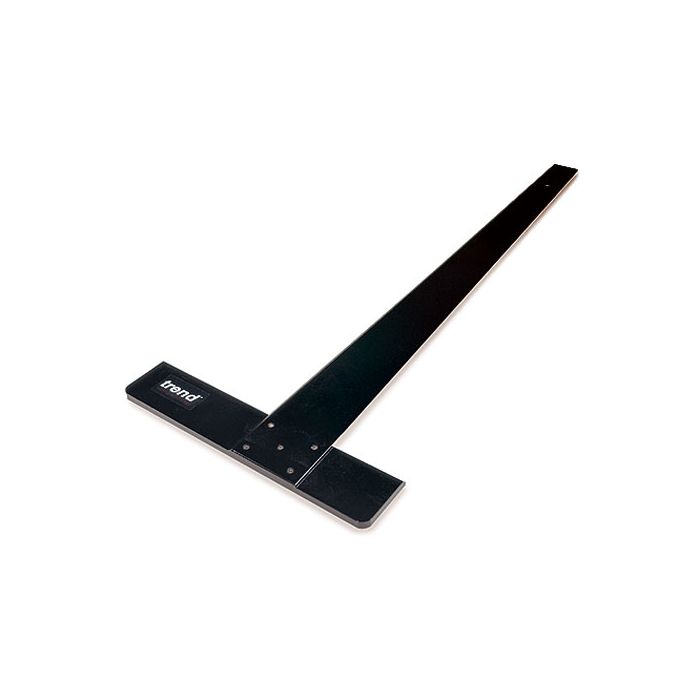

U*TSQ - T square TSQ
U*TSQ
Made from solid laminate provides an instant means of squaring off, marking out, setting up jigs etc.
- Blade guiding edge bevelled for ease of use.
- Tapered blade.
- Overall length
- 703 mm (27-3/4")
- Blade length
- 645 mm (25-3/8")
- Blade thickness
- 3 mm (1/8")
- Blade width at butt
- 70 mm (2-3/4")
- Blade width at end
- 42 mm (1-21/32")
- Butt length
- 280 mm (11-1/32")
- Butt thickness
- 8 mm (5/16")
- Butt width
- 58 mm (2-9/32")
- Butt length from guiding edge
- 140 mm (5-33/64")
- Square tolerance
- 1mm per metre
- Square tolerance
- 3/64" per 39-3/8 inch
