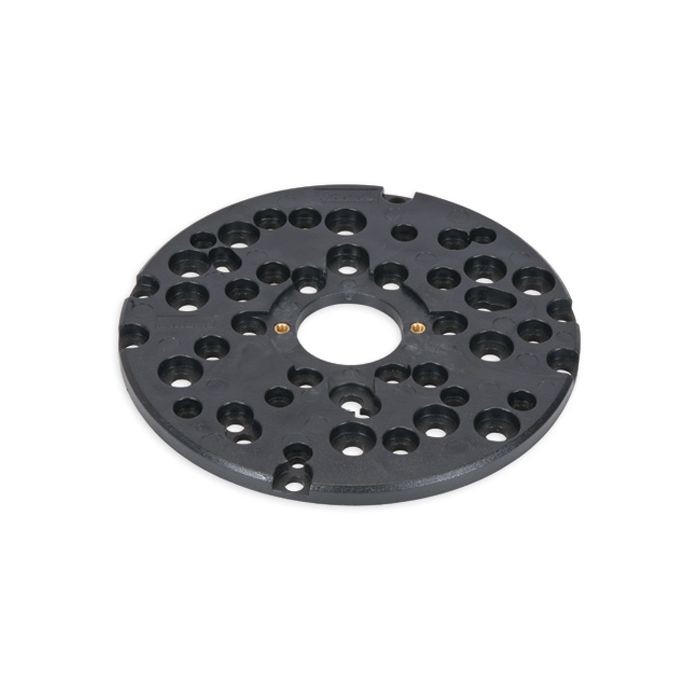

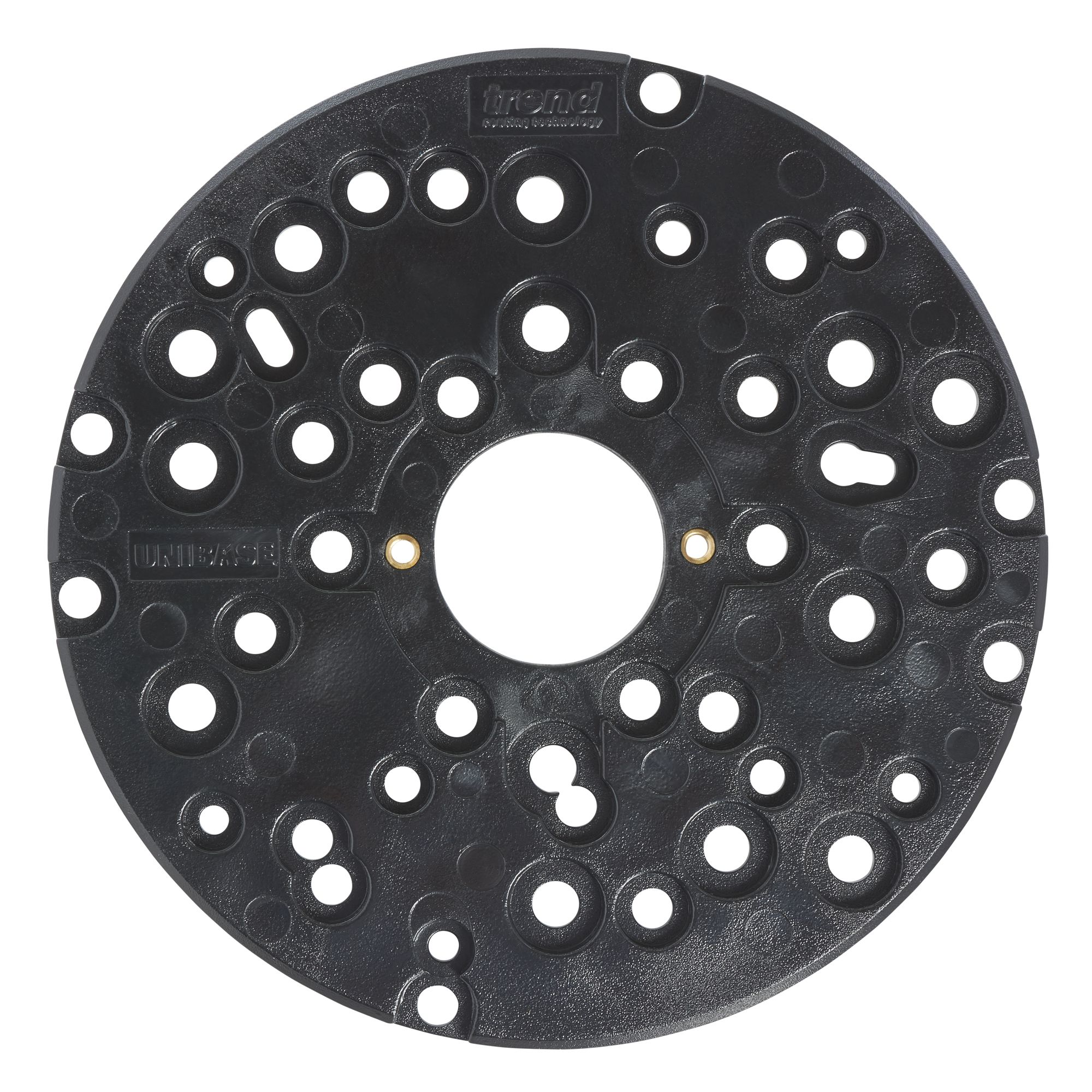

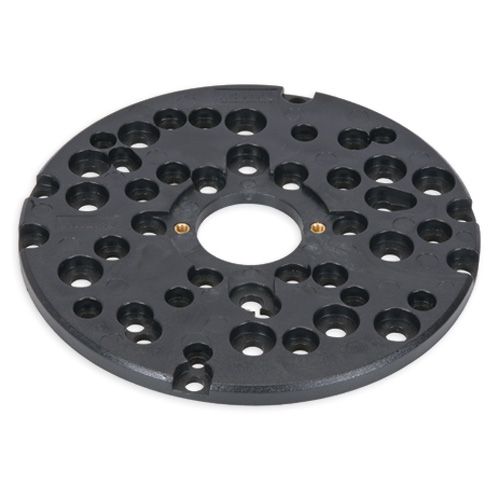

U*UNIBASE - Universal Sub-base with Pins and Bush (North America only)

U*UNIBASE
CA$49.64

Stock Level In Stock

The Unibase enables routers with non-standard euro style guide bush fittings to accept the range of Trend euro style guide bushes.

  • Unibase will fit directly to a number of routers.
  • Line-up pin used with a 5/8 inch plastic euro style guide bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base. Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
  • Instructions for fitting
  • The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend euro style guide bushes. These range from 25/64 inch up to 1 3/16 inch (GB10 - GB32). For larger diameter cutters a 1 37/64 inch guide bush (GB40) is available.
Diameter
6 11/16"
Thickness
5/16"
Product Image Product Ref Diagram No Description Quantity Required Price for 1
U*UNI/GB16 - Unibase Euro Style Guide Bush 5/8 outside diameter U*UNI/GB16

Replacement 5/8 inch plastic line-up euro style guide bush for the UNIBASE.

    CA$22.49
    U*UNI/PIN/1 - Unibase Line Up Pin 1/4/1/2 U*UNI/PIN/1

    Replacement line-up pin for the UNIBASE.

      CA$7.52

      Product Questions

      The Unibase is not compatible with the CMT7E use the GB/5/Q sub base instead.

      ... Read more

      The Unibase is compatible with the Bosch POF1400 but not the TRA001 use the GB/5/Q sub base instead.

      ... Read more

      In most cases you will need a Unibase adaptor plate ref UNIBASE which screws to the base of the router and will accept the guide bush that is included in the kit. To check if your machine is compatible, use the compatability chart in the catalogue.

      ... Read more

      The UNIBASE is required.

      ... Read more

      The UNIBASE is required.

      ... Read more

      The UNIBASE is required.

      ... Read more

      The thickness of the Trend Unibase is 8mm.

      ... Read more

      Please check our compatibility chart. A UNIBASE or sub-base may be required depending on the make and model.

      ... Read more
