Steel Construction for maximum strength, durability and accuracy.

Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.

Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.

17 Interchangeable Templates to fit all common lock case (5 templates) and face plates (12 templates).

Centering Insert ensures jig is perfectly positioned on any door

Guide Bush Collar converts the GB160 to a 30mm Guide Bush, minimising setup time.

Reference Chart provides quick reference between templates and lock sizes

2mm Height Spacers can be adjusted to accommodate different guide bush spigots.

Requires a router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).

• Steel Construction for maximum strength, durability and accuracy.

• Full-Length Fence secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.

• Thumb-Turn Quick-Release Clamps with non-marring pads, secure the jig quickly and easily.

• 16 Interchangeable Templates to fit all common lock case (4 templates) and face plates (12 templates).

• Centering Insert ensures jig is perfectly positioned on any door

• Guide Bush Collar converts the GB160 (supplied with Trend Hinge Jigs) to a 30mm Guide Bush, minimising setup time.

• Reference Chart provides quick reference between templates and lock sizes

• 2mm Height Spacers can be adjusted to accommodate different guide bush spigots.

• Requires: router (½”/12mm collet with 80mm plunge), cutter (½”/12mm shank x 12mm cut diameter x 63mm cut length) and guide bush (30mm diameter x 6mm spigot).

LOCK/JIG

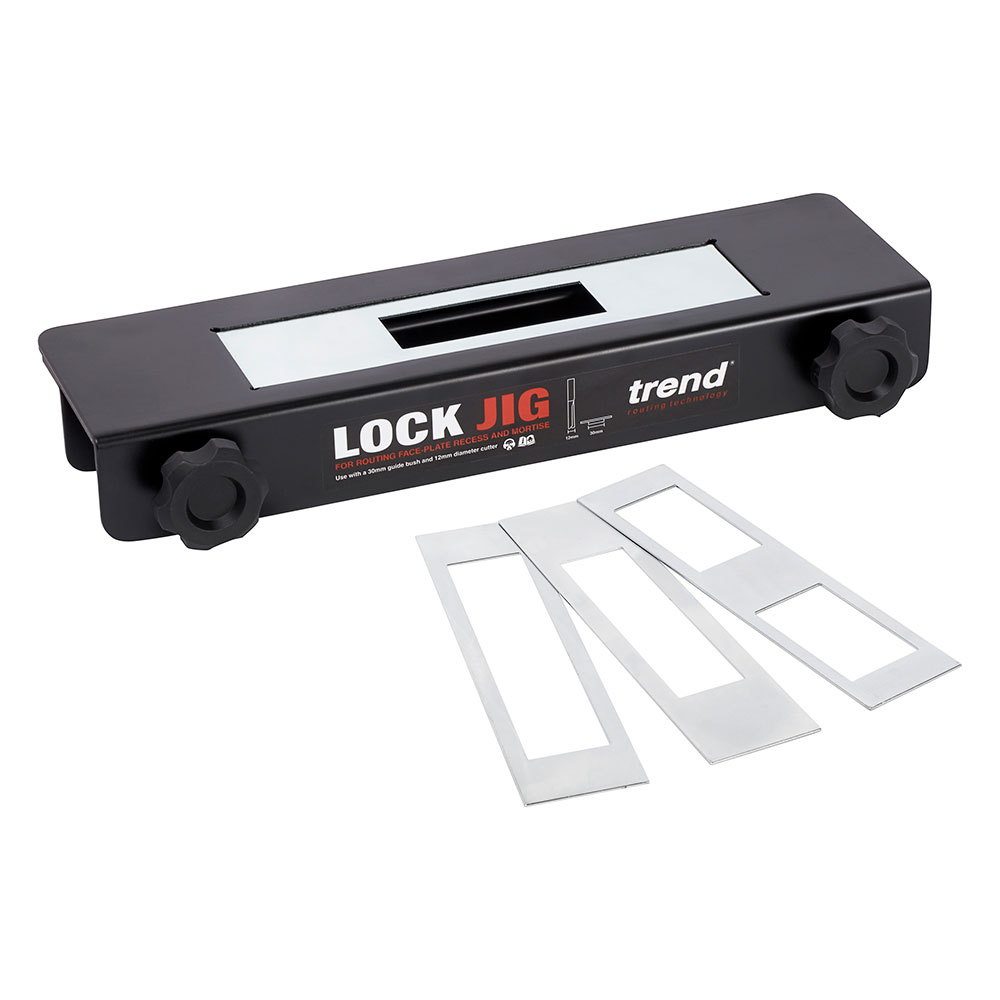

Contractor Lock Jig

A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and latches.
