Overview
Key Routing Applications
80mm plunge depth for trenching work including lock and latch fitting.
Kitchen fitting applications including worktop jointing, draining grooves, and carcass alteration.
Hand-held routing and edge moulding applications, including recesses for intumescent fire door strips and rebates.
Key Router Table Applications
Routing narrow materials where use of a router side fence isn’t practical or there is not enough stock to safely support the router whilst cutting.
Use of wide cutters, such as panel raisers, where use in a hand-held router would be dangerous.
Repetitive routing, where clamping/unclamping material for hand-held routing wastes time.
Key Features
80mm Plunge Depth is ideal for deep-cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
Precision Centering System contains a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between the cutter and guide bush for pinpoint accuracy with routing jigs.
Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
NVR Compatible allows an NVR Switch to be fitted which provides an independent switching arrangement for your router.
Router Table Safety Clip mechanically pulls the trigger inwards to keep the power on, which allows the safe use of a standard NVR when using a router table.
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
Soft Start prevents ‘kick-back’ on start-up for improved accuracy and a safer, more comfortable user experience.
Variable Speed Control gives the user total control across a wide range of cutter styles, cutter sizes, materials, and applications.
The handy RPM reference guide on the machine makes matching the speed to the maximum shown on the cutter simple, while the control dial is recessed, to prevent accidental adjustment.
Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
More Features
Micro-Adjustable Fence with Extraction featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
Cam-Lock System Compatible for quick changes between hand-held and table routing.
Moulded Carry Case provides safe storage for the router and accessories.
Details
- 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
- Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
- Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
- 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
- Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
- Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
- 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Micro-Adjustable Fence with Extraction featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
- Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
- Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
- Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Moulded Carry Case provides safe storage for router and accessories.
- Cam-Lock System Compatible for quick changes between hand-held and table routing.
Featured Products
T8
2200W ½” Dual-Mode Plunge Router
Trade-focused and engineered for both hand-held and router table use. Ideal for lock mortising, kitchen fitting, worktop jointing and timber profiling.
T8EK
2200W ½” Dual-Mode Plunge Router (240V) UK
T8ELK
2200W ½” Dual-Mode Plunge Router (110V) UK
T8EK/EURO
2200W 12mm Dual-Mode Plunge Router (230V) EU
U*T8EK
3HP 15A ½” Dual-Mode Plunge Router (120V) US
Related Products
Explore our Extensive Range of Router Cutters
Product Includes
1/2"
Collet
1/4" Collet
Sleeve
Centring
Pin
30mm
Guide Bush
Guide Bush
Adaptor
Trammel
Pin
22mm
Spanner
Router Table
Safety Clip
Under Fence
Dust Adaptor

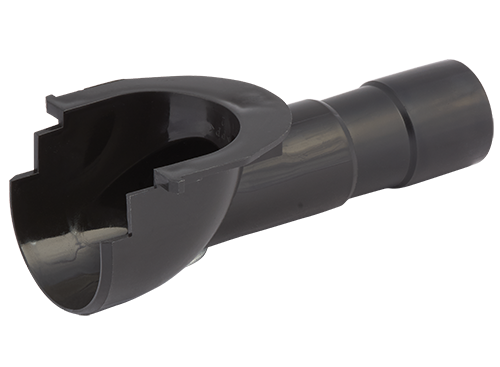

Vertical
Dust Adaptor
Cyclone
Dust Adaptor
Router Table
Height Adjuster
Side
Fence
Carry
Case
