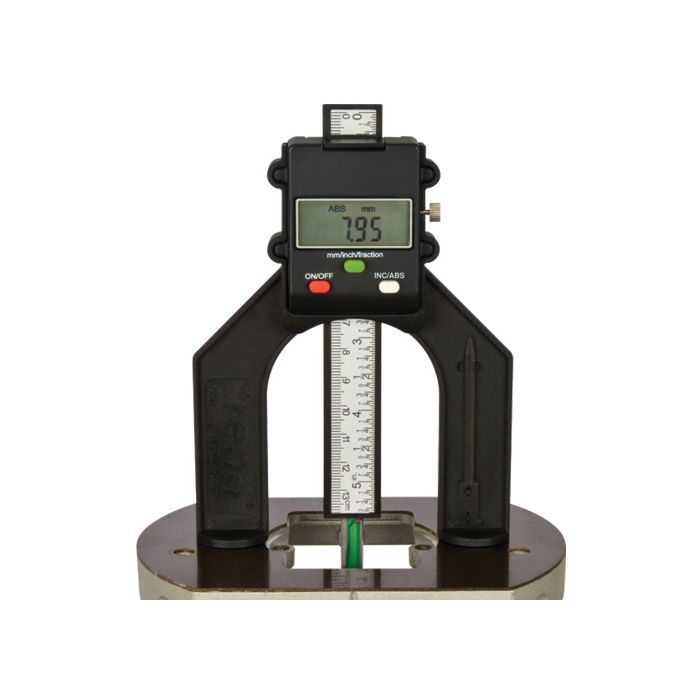

U*GAUGE/D60 - Digital depth gauge 2-3/8 inch jaw
U*GAUGE/D60
Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
- For hand routers, router tables and saw benches.
- LCD readout for mm, imperial and fractions with auto shut off 5 mins.
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 2 inch.
- Self standing with magnetic feet and flat back.
- Injection plastic moulding with plastic rule.
- Read-out has relative co-ordinate and absolute function.
- 2-3/8 inch wide aperture.
- Measuring range
- 80 mm (3 1/8 inch)
- Opening width
- 60 mm (2 3/8 inch)
- Resolution
- 0.05 mm (0.002 inch)
- Accuracy
- +/- 0.1 mm (0.004 inch)
- Repeatability
- +/- 0.1 mm (0.004 inch)
- Max measuring speed
- 1.5 m/s (60 in/s)
- Weight
- 92g
- End of life
- See below for Environmental Policy link
- ABS mode (Absolute)
- Measuring single amounts from Zero
- INC mode (Relative)
- Measuring from last point
