U*LOCK/JIG/B - Adjustable trade lock jig imperial

U*LOCK/JIG/B
CA$329.79

Stock Level In Stock

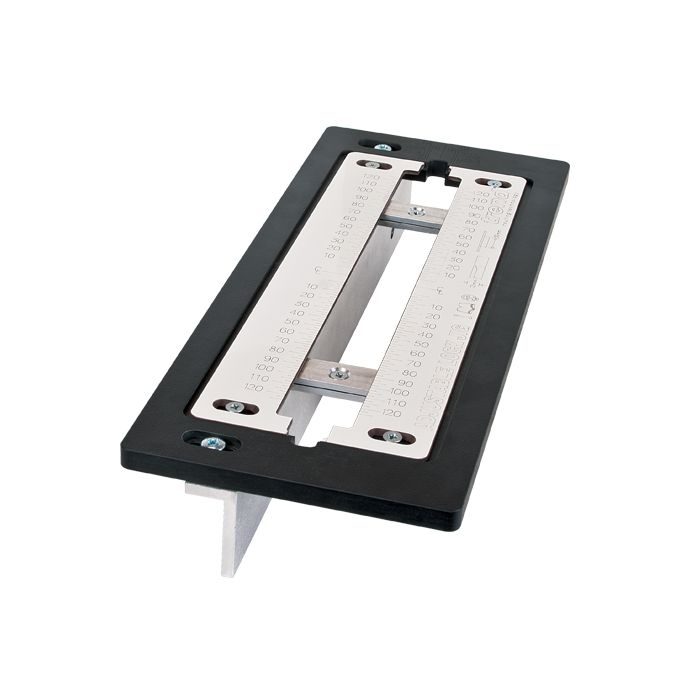

Adjustable sliding inserts to allow face-plate and mortise recesses for popular size door locks to be routed.

  • Fully adjustable for lock face plate length up to 10 inches.
  • Quick and easy to set up using engraved lines for lock size and door sizes.
  • Fast, clean & accurate results on doors even in hardwood.
  • Engraved for 5/8 inch and 3/4 inch lock width and 7/8 inch and 1 inch face plate widths.
  • Measuring required for other lock widths.
  • Engraved on underside to allow set up for 1-3/8 inch, 1-3/4 inch, 2 inch and 2-1/8 inch door widths.
  • Deeper mortises can be achieved with a suitable size of auger bit.
  • Plastic laminate body with aluminium clamping bar, with clamping range 1-3/16 inch (30mm) to 3-9/64 inch (80mm).
  • Includes a pair of setting blocks for specific lock widths and to aid door centring.
  • Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
  • Jig requires a router with 3-1/8 inch plunge and two quick action clamps. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
Door thickness min.
1-3/16" (30 mm)
Door thickness max.
3-9/64" (80 mm)
Faceplate length min. (OL)
1-3/16" (30 mm)
Faceplate length max. (OL)
10" (254mm)

Face plate engraved size (D)

Width
7/8 inch
Width
1 inch

Mortise width engraved size (D)

Width
5/8 inch
Width
3/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127 - Bearing 1/2" diameter 1/4" bore B127

Trend Router Cutter Bearing - for 1/4in shank mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 1/4in inside diameter for direct fit to router shanks and arbors.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
7.8100
B19C - Bearing 3/4" diameter 1/2" bore B19C

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
7.8200
COLL/12 - Collar pack COLL/12

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
2.5100
COLL/14 - Collar pack COLL/14

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
2.5100
