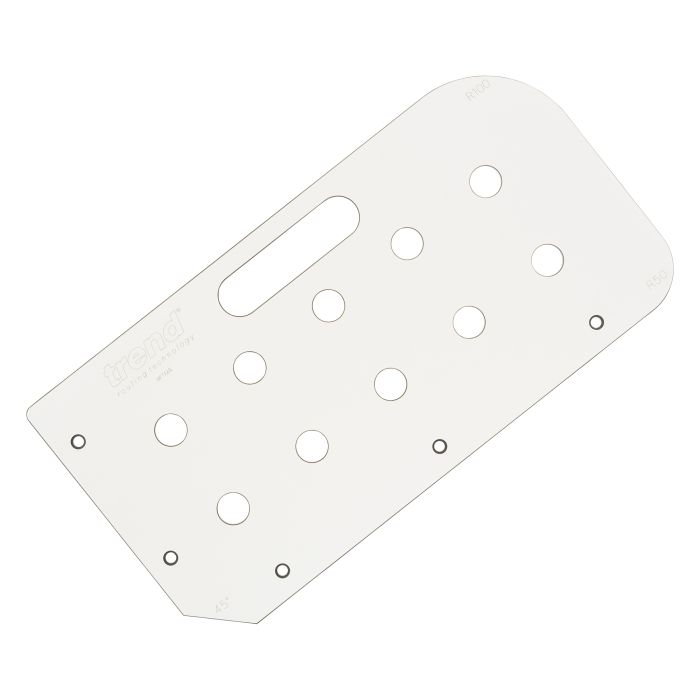

U*MFT/JIG - Multi Functional Table Routing Jig 20mm
U*MFT/JIG
Multi-functional table top making jig.
- Create accurate precise MFT style worktops quickly with a plunge router.
- For router drilling 20mm holes at 96mm centres.
- Made from Compact Grade High Pressure Laminate 12mm thick.
- Two corner radii and 45 degree end cut.
- Edge guides for initial rows, index pins for indexing for subsequent holes.
- Recess aperture facility for desk tidy.
- Jig requires:
- A portable plunge router with 1/2 inch shank capacity and minimum 1.8 HP.
- A template guide bush with 30mm outside diameter ref. GB30/A.
- A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length.
- Two clamps.
- Hole centres
- 96mm (3 3/4 inch)
- Radii
- 2 inch & 4 inch
- End cut
- 45 degrees
- Size
- 11 3/4 inch x 23 inch
- Weight
- 3 Kg
- Guide bush
- 30 mm
- Plunge router
- 1/2-inch
- Cutter
- 20mm x 37mm cut with plunge cut
- Clamps
- Two
Please note
When using a jig there will be a cumulative error that cannot be avoided when indexing the jig on existing holes.
no spare products
Videos
The Multi-Function Worktop Routing Jig. Ref: MFT/JIG
Check out the new Multi-Function Worktop Routing Jig in action!
