U*MT/JIG - Mortise and Tenon Jig
U*MT/JIG

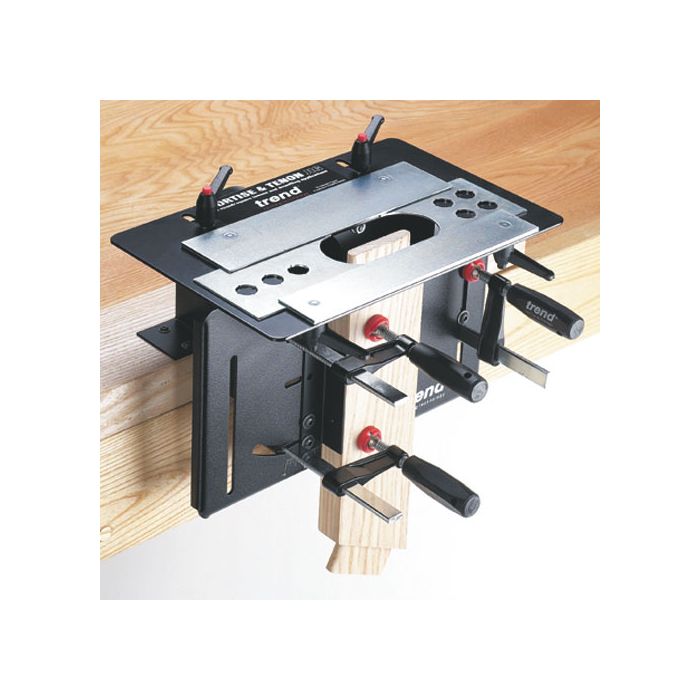

Enables mortise & tenons and dowel joints to be cut with a plunge router.

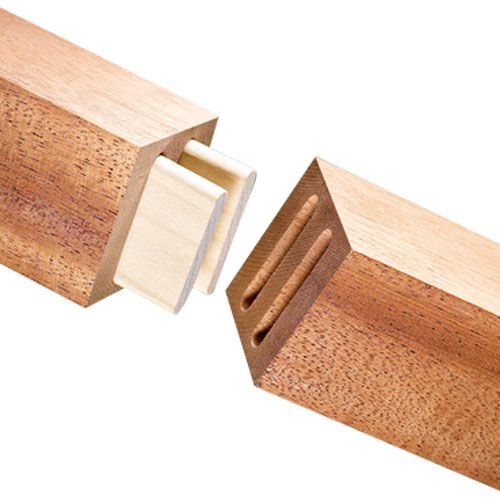

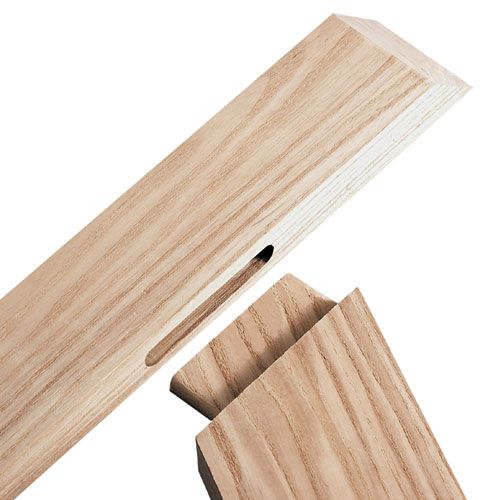

- Ideal for cabinet, chair and table construction. One set-up for both mortise and tenon giving perfectly fitting joints.

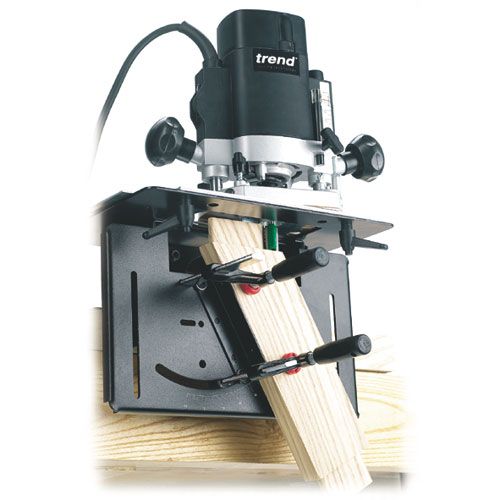

- Cuts mortise & tenon sizes of 1/4 to 5/8. Fully adjustable for compound angle joints up to 45 degrees.
- Reversible templates to produce round and square end tenons.
- Templates can be used for accurate dowelling applications.
- Includes screw-on style guide bushes.
- International PCT Appl. No. PCT/GB02/00253.
- Router not included.

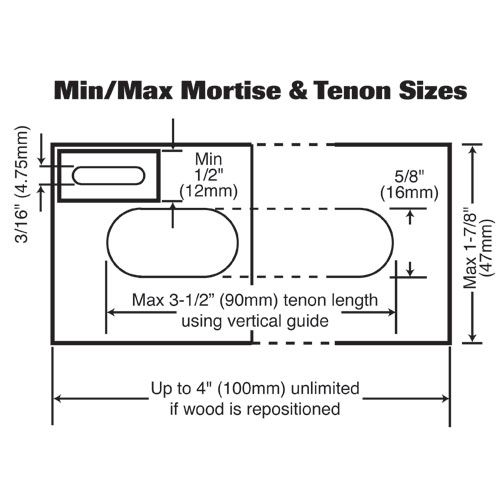

- Material thickness min
- 1/2"
- Material thickness max
- 1 7/8"
- Tenon thickness min
- 3/16"
- Tenon thickness max
- 5/8"
- Tenon width max. using vertical guide+
- 3 1/2"
- Tenon length max.++
- Approx. 1"
- Mortise length max. using vertical guide+++
- 3 1/2""
- Angle tilt compound
- -10 degree to 45 degree
++ depends on cut length and plunge depth of the router.
+++unlimited if vertical guide removed and wood repositioned.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
U*GB254 | Guide bush guides the router when using a template.
|
CA$24.81 | ||
|
U*WP-MT/02/USA | Set-up bar for the MT/JIG. |
CA$49.91 | ||
|
U*WP-MT/05 | Replacement vertical guide for the MT/JIG. |
CA$63.58 | ||
|
U*WP-MT/08 | Replacement top plate for the MT/JIG. |
CA$112.86 | ||
|
U*WP-MT/09 | Replacement back clamp for the MT/JIG. |
CA$33.26 | ||
|
U*WP-MT/10 | Replacement pivot bush for the MT/JIG. |
CA$8.33 | ||
|
U*WP-MT/11 | The square cap for the F clamp from the MT/JIG. |
CA$1.52 | ||
|
U*WP-MT/12 | Replacement back clamp for the MT/JIG. |
CA$44.40 | ||
|
U*WP-MT/13 | Replacement front clamp for the MT/JIG. |
CA$38.63 | ||
|
U*WP-MT/15 | Replacement long template for the MT/JIG. |
CA$38.63 | ||
|
U*WP-MT/16 | Replacement short template for the MT/JIG. |
CA$38.63 | ||
|
U*WP-MT/23/USA | Brass guide bush set for use with the MT/JIG. |
CA$69.09 | ||
|
U*WP-MT/28 | Replacement clamping bar shims for the MT/JIG. |
CA$4.49 | ||
|
U*WP-MT/31 | Replacement dust shield for the MT/JIG. |
CA$43.79 |
Videos
Mortise & Tenon Jig Demonstration Video
A demonstration of the features and how to use the Trend Mortise & Tenon jig.
Mortise & Tenon Jig - Sample Chair Video
The Mortise & Tenon Jig sample chair.
Spares Diagrams
Test Reviews
Product Questions
1/4 (6.35mm) mortise max depth 26mm|5/16 (8mm) mortise mx depth 35mm|3/8 (9.5mm) mortise max depth 38mm|1/2 (12.7mm) mortise max depth 38mm|5/8 (15.9mm) mortise max depth 40mm.
In the UK and America, jigs work in imperial sizes the cutter set required is SET/MT1X1/4TC, SET/MT1X8MMTC. For jigs set up in millimetres the cutter set required is SET/MT2X8MMTC.
Yes, it cuts tenons up to 45 degrees.
No. There is a set available as a separate item.
47mm.
Yes. 8 different tenon sizes are possible.
The max timber sizes are 50mm x 140mm
Write Your Own Question
Accessories
-
U*GB/5/MCA$125.42 -
U*MT/DUSTKITCA$135.31 -
U*SET/MT1X1/2TCCA$154.51 -

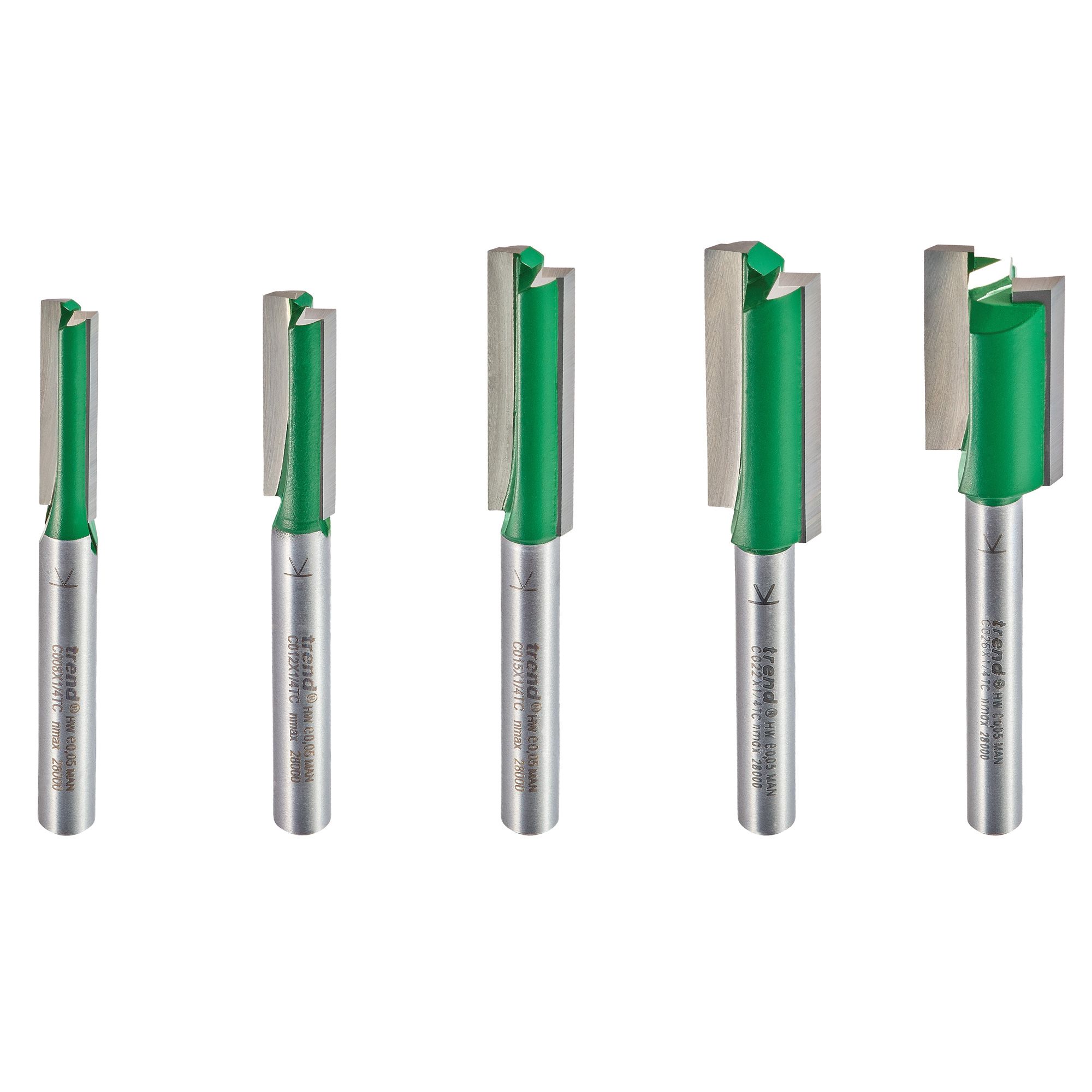

U*SET/MT1X1/4TCCA$147.71 -
