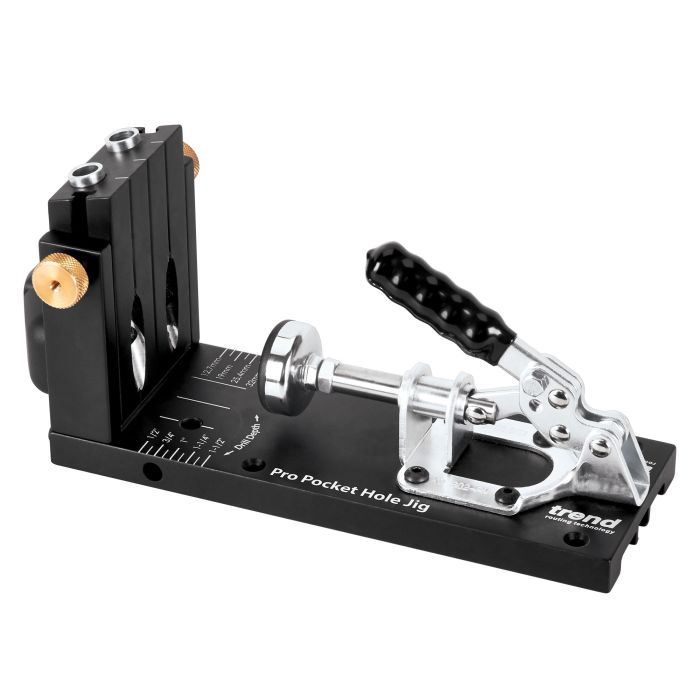

U*PH/JIG/AK - Pocket Hole Jig pro Kit

U*PH/JIG/AK
CA$455.76

Stock Level In Stock

For fast and accurate joining of timber and plywood giving strong instant joints.

  • Adjustable height to allow material from 1/2 inch to 1 1/2 inch to be jointed.
  • Solid hardened bushes with fixed pitch of 30mm.
  • Use on timber, MDF, plywood and blockboard.
  • Workpiece support and end stop.
  • Allows a variety of joints to be created individually.
  • Quick and easy drill bit depth setting turret.
  • Dust extraction spout.
  • Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out).
  • Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
  • No clamps required.

Multi-function Pocket Hole Jig

Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints

Multi-function design for twin hole or single hole pockets

Makes strong secure joints in seconds

Works with all timber thicknesses from ½" - 1½"

For new work, repair work and different thickness materials

Features

Adjustable height to allow material from ½" - 1½" to be jointed.

Workpiece support and end stops for larger workpieces.

Quick and easy drill bit depth setting turret and dust extraction spout.

Workpiece can be handled immediately after gluing & screwing creating time saving benefits.

Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.

Fast, strong and quick construction for impressive projects with no additional clamps required.

 Details

  • Adjustable height to allow material from ½" - 1½" to be jointed.
  • Solid hardened bushes with fixed pitch of 30mm.
  • Use on timber, MDF, plywood and blockboard.
  • Workpiece support and end stop.
  • Allows a variety of joints to be created individually.
  • Quick and easy drill bit depth setting turret.
  • Dust extraction spout.
  • Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out).
  • Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
  • No clamps required.

Related Products

Material thickness min.
1/2 inch
Material thickness max.
1 1/2 inch
Material width min.
1 1/2 inch
Hole pitch
1 3/16 inch
Drill diameter
3/8 inch
Square drive bit size
No.2
Dust spout ID
1 3/16 inch
Underside T slot
31/64 -21/64 inch x 15/64 inch
California Prop 65
See below for Safety Link - Wood Dust

no spare products

Videos

Pocket Hole Jig Pro Overview

Demonstrating the functions of the Pocket Hole Jig Pro.

Product Questions

Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.

... Read more
