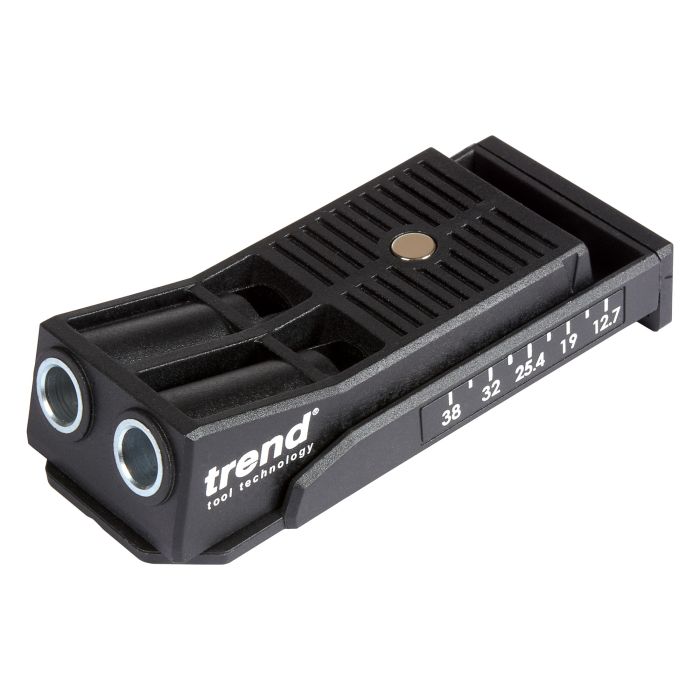

U*PH/JIG/C - Trend Twin Pocket Hole Jig

U*PH/JIG/C
CA$56.69

Stock Level In Stock

Adaptable and portable Go Anywhere Pocket Hole Jig for new projects, strengthening and repair work in materials from 12.7mm up to 38mm thick

  • 1.Twin Pockets can be used for drilling two holes for increased strength or single holes for narrower components
  • 2.Full Length Hardened Drill Guides for precision pockets and long life span
  • 3.Wide Material Dimensions Range covers stock from 1/2 inch to 1 1/ 2 inch
  • 4.Unlimited Material Width can be easily relocated across any material width for infinite pocket hole positioning
  • 5.Multi-Function ideal for making repairs to existing work, constructing smaller projects and heavy duty builds
  • 6.Adaptable for multiple jointing styles and applications
  • 7.Compact and Portable fits easily into a pocket or tool pouch, always readily to hand
  • 8.Fast Setup easy adjustments for different component sizes
  • 9.Quick Set Drill and Timber Setting sliding Set Up Gauge sets the correct drilling depth and jig position for different material thicknesses
  • 10.Trend Snappy Chuck Compatible supplied with high quality HSS stepped drill and No2 square Drive bit with quick change hex shanks
  • 11.Ready To Go supplied complete with HSS Stepped drill, 5 29/32 inch Square Drive driver bit and selection of screws
  • 12.Magnetic Clamp plate aids location of the jig when clamping
  • 13.Multi Material compatibility Ideal for jointing in hard and softwoods and sheet materials

Twin Pocket Hole Jig

Adaptable and portable ‘Go Anywhere’ Pocket Hole Jig for new projects, strengthening and repair work in materials from ½" up to 1½" thick

Multi-function design for twin hole or single hole pockets (³/₈")

Makes strong secure joints in seconds

Works with all timber thicknesses from ½" up to 1½".

For new work, repair work and different thickness materials with precison

Features

Double or single pockets can be drilled from one jig for narrow or wider work.

Premium construction, full length hardened drill guides and durable glass fibre reinforced PA6 Nylon plastic.

Versatile material range, covers thicknesses from ½" up to 1½".

Adaptabledesign for lightweight and heavy duty projects, plus repairs and in-situ drilling.

Sliding Set Up Gauge for speedy set up of drill and material depths.

Strong joints without gluing, workpiece can be handled immediately after screwing.



Details



  • Twin Pockets can be used for drilling two holes for increased strength or single holes for narrower components.
  • Full Length Hardened Drill Guides for precision pockets and long life span.
  • Wide Material Dimensions Range covers stock from ½" up to 1½" thick.
  • Unlimited Material Width can be easily relocated across any material width for infinite pocket hole positioning.
  • Multi-Function ideal for making repairs to existing work, constructing smaller projects and heavy duty builds.
  • Adaptable for multiple jointing styles and applications.
  • Compact and Portable fits easily into a pocket or tool pouch, always readily to hand.
  • Fast Setup easy adjustments for different component sizes.
  • Quick Set Drill and Timber Setting sliding Set Up Gauge sets the correct drilling depth and jig position for different material thicknesses.
  • Trend Snappy Chuck Compatible supplied with high quality HSS stepped drill and No2 square Drive bit with quick change hex shanks.
  • Ready To Go supplied complete with HSS Stepped drill, 150mm (5 29/32"). Square Drive driver bit and selection of screws.
  • Magnetic Clamp plate aids location of the jig when clamping.
  • Multi Material compatibility Ideal for jointing in hard and softwoods and sheet material.

Related Products

Material thickness min.
1/2 inch
Material thickness max.
1 1/2 inch
Hole centres
27/32 inch
Drilling angle
15 degrees
California Prop 65
See below for Safety Link - Wood Dust

no spare products

Videos

Twin Pocket hole Jig PH/JIG/C Overview

Video overview of the Twin Pocket Hole Jig.

Product Questions

Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.

... Read more
