Key Applications

Bespoke kitchen cabinet installations where door hinge positions may need to be altered around obstacles such as boilers and soil pipes

Undrilled concealed appliance doors, where hinge positions will vary between different appliance manufacturers.

Custom cabinetry projects such as wardrobes, TV units, display cabinets and bathroom cabinets.

3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.

In-built Depth Stop to prevent over-drilling.

Pilot Hole Plate ensures hinges are mounted perfectly square.

Pin Guide System minimises setup time & guarantees positional accuracy.

Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

Spring Loaded Drill Guide prevents machine bit from damaging door surfaces.

Large Clamping Area to secure the jig during use.

Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.

The 35mm Machine bit has a Depth-Stop Shoulder to prevent over-drilling and a Centre Point Tip for improved cutting accuracy.

3, 4, 5, & 6mm Hinge Inset Positions

This feature allows users to effortlessly rotate the jig to switch between preset hinge inset positions, improving hinge installation and productivity. Previously, adjusting hinge inset positions required manual recalibration or separate jigs, resulting in time-consuming adjustments. With the new feature, users can quickly and accurately change between different hinge inset positions without additional tools. This simplifies the process and reduces the risk of errors.

The CAB/JIG/B is equipped with an In-Built Depth Stop, a valuable feature that prevents over-drilling, ensuring accurate and consistent results while protecting the integrity of the material being worked on. The 35mm Concealed Cabinet Jig also features a Spring-Loaded Drill Guide that effectively safeguards when aligning or removing the jig. By keeping the tip of the router cutter above the jig's bottom face, it mitigates any potential accidental damage to the door.

Pilot Hole Positions

The Pilot Hole Plate incorporates two holes for pilot holes. This design ensures that hinges are mounted perfectly square and at a precise 90-degree angle, resulting in doors that open and close perfectly straight. The accurate alignment provided by the Pilot Hole Plate guarantees optimal functionality and aesthetics for your cabintry.

Concealed Cabinet Hinge Solutions

• 3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.

• In-built Depth Stop to prevent over-drilling.

• Pilot Hole Plate ensures hinges are mounted perfectly square.

• Pin Guide System minimises setup time & guarantees positional accuracy.

• Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

• Spring Loaded Drill Guide prevents machine bit from damaging door surfaces.

• Large Clamping Area to secure the jig during use.

• Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.

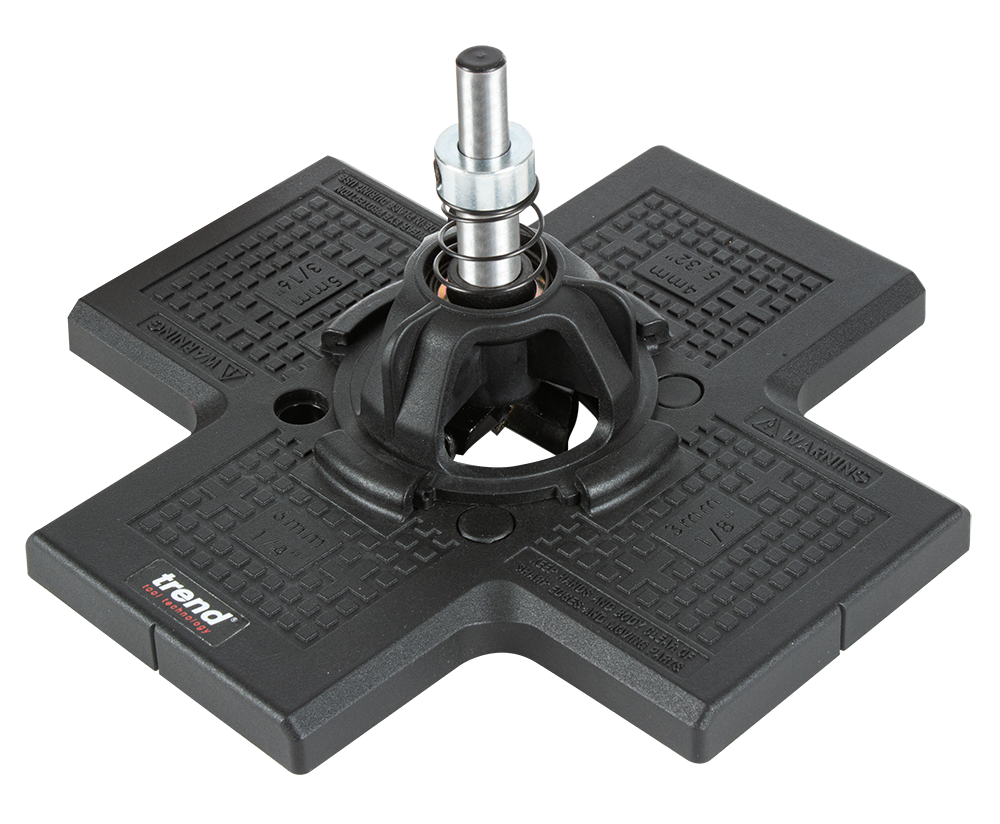

CAB/JIG/B
35mm Concealed Cabinet Hinge Jig

A precision drilling jig for installing concealed cabinet (‘euro-style’) hinges accurately and quickly. Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment. For use with a standard Combi Drill. Includes 35mm TCT machine bit.

CAB/JIG/B

U*CAB/JIG/B
(For sale in USA & Canada only)

CAB/BIT/35TC

35mm TCT Concealed Hinge Jig Machine Bit

A replacement 35mm precision machine bit for the Trend CAB/JIG/B Concealed Cabinet Hinge Jig.

• TCT Tipped for a precision finish and long bit life.
• Cutting Spurs leave a cleaner finished edge, especially in man-made materials such as MFC and MDF.
• Centre Point for improved cutting accuracy.
• Depth-Stop Shoulder to prevent over-drilling.

CAB/BIT/35TC

U*CAB/BIT/35TC
(For sale in USA & Canada only)
