U*CURV/8X1000 - Mini flexible curve guide 5/16 x 39 inches


Stock Level In Stock

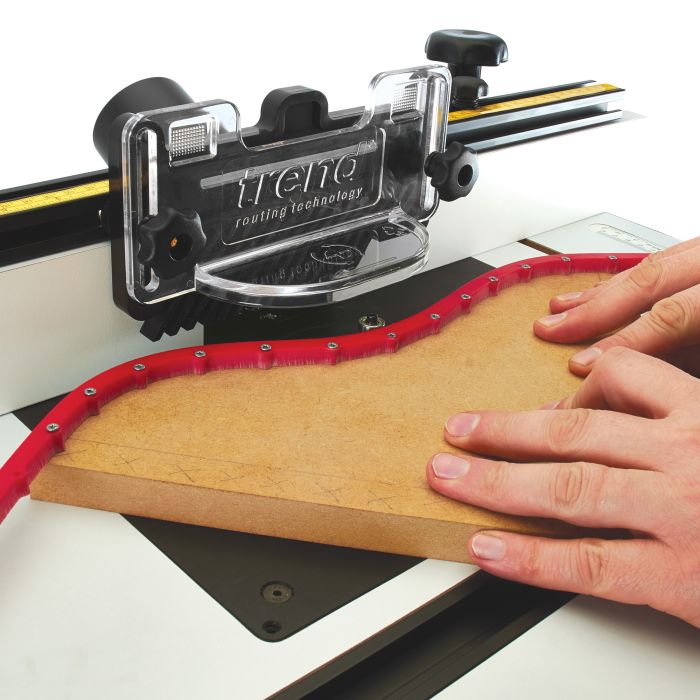

A mini size flexible guide that is used to make a pattern, allows a shape to be cut repeatedly with precision.

  • Will produce round, segmental or elliptical arch shapes, curves and cutouts.
  • Use with a router and bearing guided cutter or with a guide bush and unguided cutter.
  • Flexible guide is screwed to a template with the fixing screws included.
  • Template should be rough cut oversize prior to routing.
  • For MDF boards up to 3/8-inch thick.
  • An 8mm user made spacer should be fitted to underside of router to keep router stable.
Width (excl. holes)
5/16 inch
Inside radius min.
1 3/16 inch
Outside radius min.
1 3/8 inch
Material max. thickness
10 mm
Fixing screws
2.5mm x 16mm Csk Pozi
