U*LOCK/JIG/A - Lock Jig Large comes with Baldwin Template

U*LOCK/JIG/A

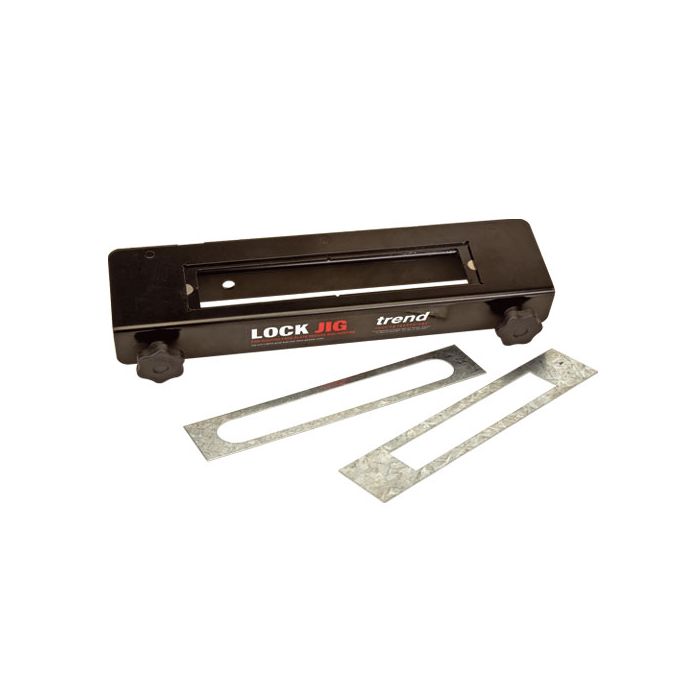

main product photo
CA$648.89

Stock Level In Stock

Add to Wish List

For routing the face-plate and mortise for larger locks quickly & accurately.

  • Suitable for two sizes of Baldwin locks with faceplate sizes 1 1/4" x 8" or 1" x 8" and mortise sizes 1" x 5 23/32" or 7/8" x 5 23/32".
  • Fast, clean & accurate results on doors 1 5/16 inch to 2 1/4 inch thick, even in hardwood.
  • Adaptor plate included to allow smaller templates to be fitted (as supplied with standard LOCK/JIG).
  • An auger bit and drill is required to complete deep mortises.
  • Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
  • Jig requires a router with 3-1/8 inch plunge.
Spec
Door thickness min.
1 5/16 "
Door thickness max.
2 1/4 "

Face-plate dimensions (D x OL)

Imperial
Template
1 1/4" x 8"
C
1" x 8"
D
0.787" x 9 1/4"radius end
1
0.945" x 9 1/4" radius end
2

Mortise dimensions (D x OL)

Imperial
Template
1" x 5 23/32"
3
7/8" x 5 23/32"
4
0.669" x 6 11/16" mm
A*

*Mortise is actually 7 3/32" to give 3/16" learance each end.

Customer Review
Trustpilot
Spares
Product Image Product Ref Diagram No Description Quantity Required Price for 1
U*C172X1/2TC - Two Flute Bit 15/32 inch (12 mm) diameter x 2 1/2 inch cut U*C172X1/2TC

Trend Craft Pro 1/2in shank worktop joint cutter - 15/32in diameter Two Flute Carbide tips.

  • 15/32in diameter X 2 1/2in cutting depth; the essential cutter for routing post formed joints on extra thick worktops
  • Cut crisp and clean precision fit joints every time; especially suited for use on abrasive chipboard core laminate faced worktops.
  • Bottom cut feature for plunge work including stopped grooving and morticing applications.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/2in shank for use in bigger routers and heavier applications with 'K'mark shank to ensure safe working practices.
 CA$51.24
U*GB/COLL/1630 - Guide Bush Collar 16mm to 30mm U*GB/COLL/1630

Aluminium collar to fit guide bushes.

  • Enables single shaped templates to be used to cut perfectly matching pocket & inlay.
  • Collars have integral rubber 'O' rings to ensure collar secures onto guide bush.
  • Templates should be made with suitable sized corners for the collar being used.
  • The correct diameter straight cutter as indicated should always be used.
 CA$15.07
U*GB/US/160 - Screw-on Style Guide Bush USA 16mm hinge Jig U*GB/US/160

Guide bush with locking ring for Hinge Jigs.

    		 CA$11.62
    Videos & Downloads

    Videos

    Lock Jig Video

    Using the Lockjig to rout a door lock.

    Hinge Jig Video

    Demonstrating how easyand quick it is to hang a door using a hinge jig

    Safety Sheets

    Test Reviews

    FAQ

    Product Questions

     What's the hinge radius on the templates? Is it adjustable? If so, how?

    The standard radius produced with our lock jig is 6mm this is the radius from a 12mm diameter cutter. A 10mm radius can be obtained with a 20mm cutter C030A in conjunction with a GB240 24mm guide bush.
