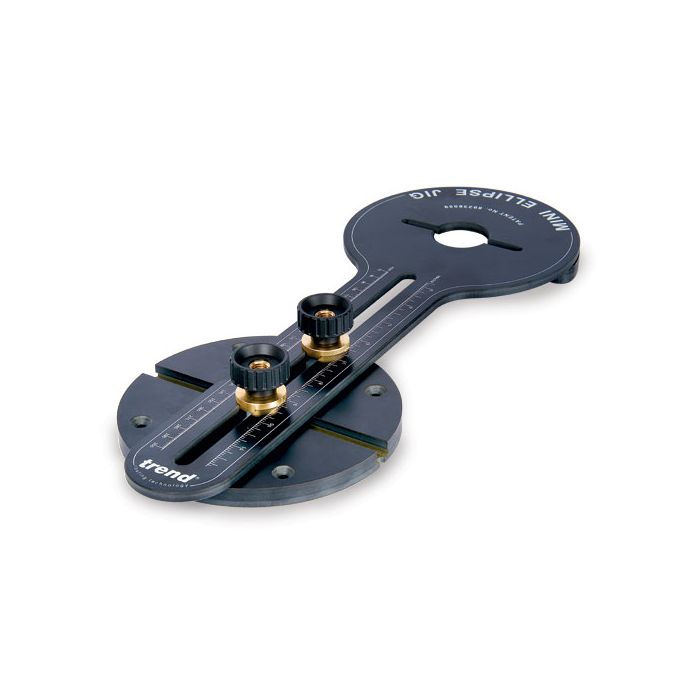

U*ME/JIG - Mini Ellipse Jig set
U*ME/JIG
The Mini Ellipse Jig is ideal for routing elliptical picture frames, mirrors, clocks and small coffee tables.
- Working on the same principle as the Ellipse Jig, the Mini Ellipse Jig, produced from plastic will cut much smaller ellipses.
- The main plate will accept most makes of small router for which screws are provided.
- By removing one slide and using a special pin, the jig can be used to accurately cut circles.
- For marking out prior to cutting, the plate can be fitted with a pencil plug. The jig is then turned into a drawing instrument.
- Circle dia. min
- 6 1/4"
- Circle dia. max
- 23 3/4"
max min
22 1/2" 20 1/2" 17"
19 5/8" 17 3/4" 14 1/8"
15 3/4" 13 3/8" 9 3/4"
11 3/4" 9 3/4" 6 1/4"
8 5/8" 6 1/4" 6 1/4"
