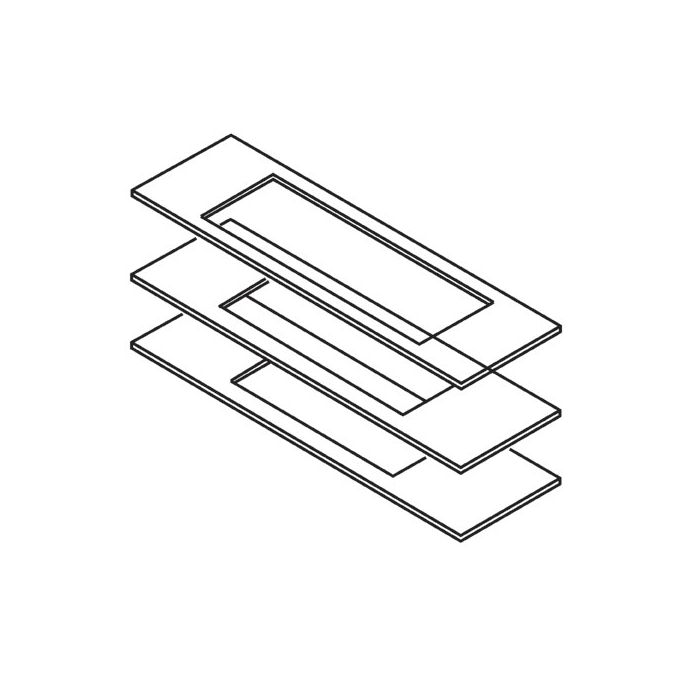

U*WP-LOCK/T/SET - Lock template set (16 pieces)
U*WP-LOCK/T/SET
Pack of 16 templates as supplied in standard Lock Jig. Comprises of face templates 1-12 & mortise templates A-D.
- Will fit large lock jig.

Face-plate Dimensions
- Imperial (Metric)
- Template
- Imperial (Metric)
- Template
- 7/8"x6" (22.2x156 mm)
- 1
- 7/8"x6 " (22.5x152.5 mm)
- 2
- 1"x4 3/4" (25.4x121 mm)
- 3
- 1"x5"(25.4x128 mm)
- 4
- 1"x5 1/4"(25.4x133.5 mm)
- 5
- 1"x5 3/4"(25.4x145 mm)
- 6
- 1"x6"(25.4x153 mm)
- 7
- 1"x6"(25.4x156.5 mm)
- 8
- 1"x6 1/2"(25.4x165.5 mm)
- 9
- 1"x7"(25.4x177 mm)
- 10
- 1"x2 1/4"(25x57.5 mm)
- 11 UPPER
- 1"x2 1/4"(26x56.5 mm)
- 11 LOWER
Mortise Dimensions
- 5/8"x2 3/4" 16x72 mm
- A
- 5/8"x4 1/4" 16x107 mm
- B
- 3/4"x3" 19x78 mm
- C
- 3/4"x4 1/4" 19x109 mm
- D
